Tied-arch bridge pre-design, in minutes

BowstringPRO is a new pre-design tool for steel tied-arch and network arch bridges, developed by CCES together with ArcelorMittal Global R&D and Steligence® Engineering. The free version in English and French UI and reports, is available to download now.

You enter a handful of geometric and loading parameters. The software generates the 3D model and its mesh, every load case and every Eurocode combination, runs the analysis, and returns a capacity ratio for each structural element together with the combination that governs it. Comparing a vertical hanger arrangement against a network solution becomes an afternoon rather than a project phase.

Download the free version

Windows desktop · free of charge · software and user manual in one package

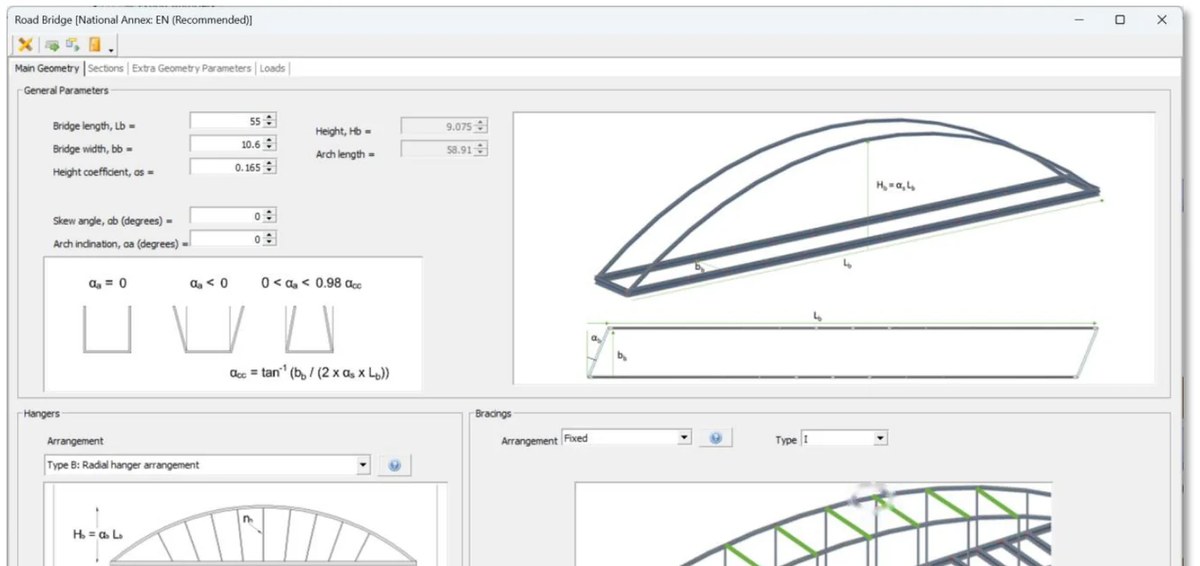

The road bridge wizard - geometry, hangers, bracing and cross beams, with the model drawn as you type.

What it covers

•

Road, rail and footbridge wizards, with geometry, load cases and combinations generated automatically

•

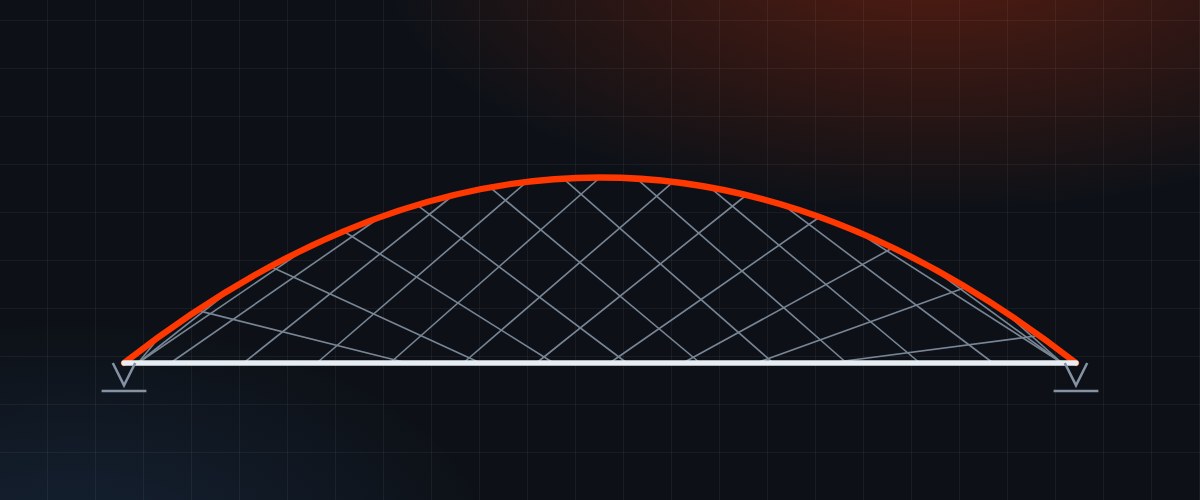

Five hanger arrangements, including true network arches, on vertical or inclined arches

•

ULS, SLS, fatigue, stability and toughness checks, plus modal analysis, seismic loads and high-speed rail dynamics

•

Eurocodes 0, 1, 3, 4 and 8, with National Annexes for Germany, France, Poland, Italy, Luxembourg, Belgium and the UK

•

Hot-rolled profiles from the ArcelorMittal database, and summary and detailed reports exported to .docx

Coming next: Expert Mode. The free version covers the full pre-design workflow using hot-rolled sections for the arches and intermediate cross beams. Expert Mode adds welded plate arch and cross-beam sections and the complete option set.

Visit bowstringpro.cces.gr

Developed by

Questions or support: info@cces.gr · steligence.engineering@arcelormittal.com

BowstringPRO supports preliminary concept design calculations and cannot be used to carry out final design calculations. It is intended for professional users active in steel construction who understand its possibilities and limitations; use is at the user's own responsibility and risk. An executive project requires the advice of an external engineering office. No warranty is granted.
